Transceiver Specification
| Image | Speed | Type | Customer Type | Distance | Connect | Wavelength |
|
|
1.6T |
OSFP |
1.6T 2xFR4 |
2km |
2xDual LC |
CWDM |
1.6T |
OSFP |
1.6T DR8 |
500m |
Dual MPO-12
|
1311nm |
|
1.6T |
OSFP-XD |
1.6T 2xFR4 |
2km |
2xDual LC |
CWDM |
|
1.6T |
OSFP-XD |
1.6T DR8 |
500m |
Dual MPO-12
|
1311nm |
|
|
|
800G |
QSFP-DD800 / OSFP |
800G FR4 |
2km |
2xDual LC |
CWDM |
800G |
QSFP-DD800 / OSFP |
800G DR4 |
500m |
MPO-12 |
1311nm |
|
800G |
QSFP-DD800 / OSFP |
2x400G LR |
10km |
2xDual LC, Dual CS |
1310nm |
|
800G |
QSFP-DD800 / OSFP |
2x400G FR |
2km |
2xDual LC, Dual CS |
1310nm |
|
800G |
QSFP-DD800 / OSFP |
8x100G LR |
10km |
Dual MPO-12, MPO-16 |
1310nm |
|
800G |
QSFP-DD800 / OSFP |
8x100G FR |
2km |
Dual MPO-12, MPO-16 |
1310nm |
|
800G |
QSFP-DD800 / OSFP |
8x100G DR |
500m |
Dual MPO-12, MPO-16 |
1310nm |
|
800G |
QSFP-DD800 / OSFP |
8x100G VR8 |
30m(OM3) / 50m(OM4) |
MPO-16 |
850nm |
|
800G |
QSFP-DD800 |
2x400G DR |
500m |
2xDual LC, Dual CS |
1310nm |
|
800G |
QSFP-DD800 |
8x100G VR4.2 |
30m(OM3) / 50m(OM4) |
MPO-12 |
850/910nm |
|
800G |
OSFP |
800G ZR |
120km |
LC |
DWDM |
|
800G |
OSFP |
800G ZR+ |
480km |
LC |
DWDM |
|
|
|
400G |
QSFP-DD |
400G ZR+ |
480km |
LC |
DWDM |
400G |
QSFP-DD |
400G ZR |
120km |
LC |
DWDM |
|
400G |
QSFP-DD |
400G ER4-30 |
30km |
LC |
NWDM |
|
400G |
QSFP-DD / QSFP112 |
400G LR4 |
10km |
LC |
CWDM4 |
|
400G |
QSFP-DD / OSFP |
400G FR4 |
2km |
LC |
CWDM4 |
|
400G |
QSFP-DD / OSFP |
400G DR4 |
500m |
MPO-12 |
1311nm |
|
400G |
QSFP-DD / OSFP |
400G VR4 |
30m(OM3) / 50m(OM4) |
MPO-12 |
850nm |
|
400G |
QSFP-DD / OSFP |
400G SR8 |
70m(OM3) / 100m(OM4) |
MPO-16 |
850nm |
|
400G |
QSFP-DD / OSFP |
400G SR4.2 |
70m(OM3) / 100m(OM4) 150m(OM5) |
MPO-12 |
850nm/910nm |
|
|
|
200G |
QSFP56 |
200G LR4 |
10km |
LC |
LAN-WDM |
200G |
QSFP56 |
200G FR4 |
2km |
LC |
CWDM4 |
|
200G |
QSFP56 |
200G SR4 |
70m(OM3)
|
MPO-12 |
850nm |
|
|
|
100G |
QSFP28 |
100G ZR4 |
80km |
LC |
LAN-WDM |
100G |
QSFP28 |
100G ER4 |
40km |
LC |
LAN-WDM |
|
100G |
QSFP28 |
100G ER4-Lite |
40km |
LC |
LAN-WDM |
|
100G |
QSFP28 |
100G LR4 |
10km |
LC |
LAN-WDM |
|
100G |
QSFP28 |
100G CWDM4 |
20km |
LC |
CWDM4 |
|
100G |
QSFP28 |
100G SR4 |
70m(OM3)
|
MPO-12 |
850nm |
|
100G |
QSFP28 |
100G SR1.2 |
70m(OM3)
|
LC |
850nm / 910nm |
|
|
|
50G |
QSFP56 |
50G SR |
70m(OM3)
|
LC |
1311nm |
50G |
QSFP56 |
50G LR |
10km |
LC |
1311nm |
|
50G |
QSFP56 |
50G ER |
40km |
LC |
1311nm |
|
|
|
40G |
QSFP+ |
40G SR4 |
100/300m(OM3)
|
MPO-12 |
850nm |
40G |
QSFP+ |
40G LR4 |
10km |
LC |
CWDM4 |
|
40G |
QSFP+ |
40G ER4 |
40km |
LC |
CWDM4 |
|
|
|
25G |
SFP28 |
25G SR |
70m(OM3)
|
LC |
850nm |
25G |
SFP28 |
25G LR |
10km |
LC |
1310nm |
|
25G |
SFP28 |
25G ER |
40km |
LC |
1310nm |
|
25G |
SFP28 |
25G ZR |
80km |
LC |
1300nm |
|
|
|
10G |
SFP+ |
10G SR |
300m(OM3) |
LC |
850nm |
10G |
SFP+ |
10G LR |
10km |
LC |
1310nm |
|
10G |
SFP+ |
10G ER |
40km |
LC |
1550nm |
|
10G |
SFP+ |
10G ZR |
80km |
LC |
1550nm |
|
|
|
1G |
SFP |
1G SX |
550m(OM2) |
LC |
850nm |
1G |
SFP |
1G LX |
10km |
LC |
1310nm |
|
1G |
SFP |
1G EX |
40km |
LC |
1550nm |
|
1G |
SFP |
1G ZX |
80km |
LC |
1550nm |

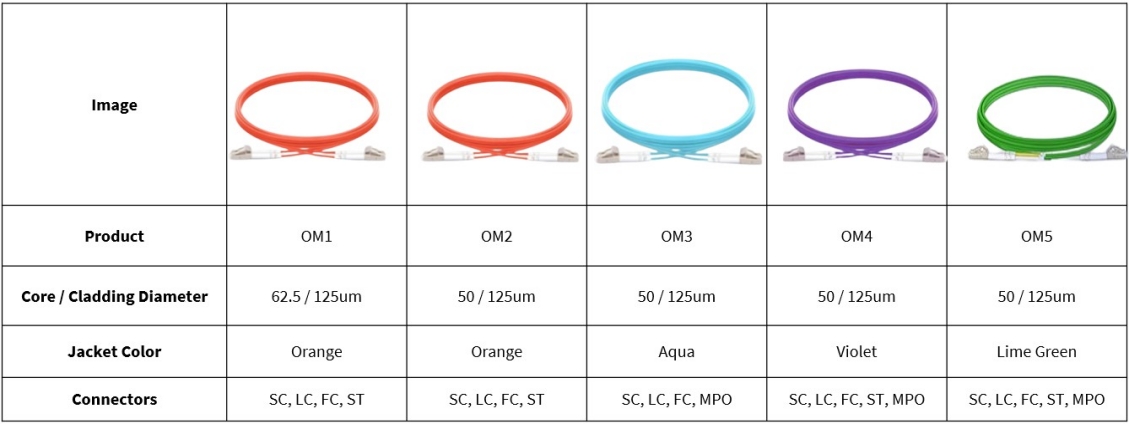

Fiber Optic Cable (MMF)
.png)
Fiber Optic Cable (SMF)
_1.png)

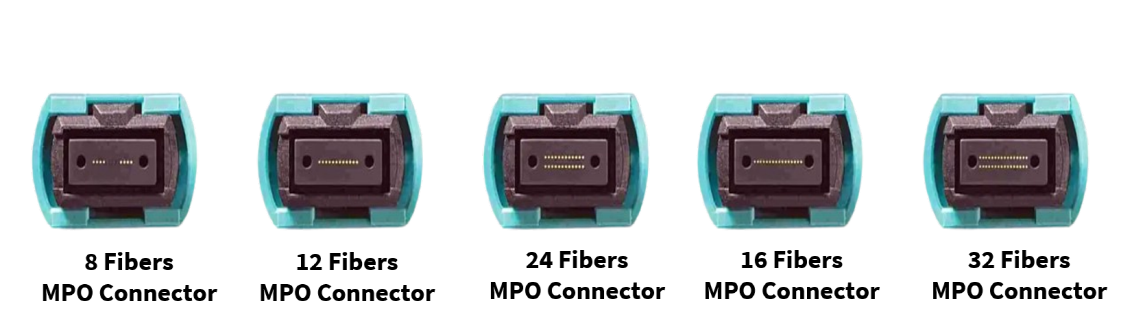

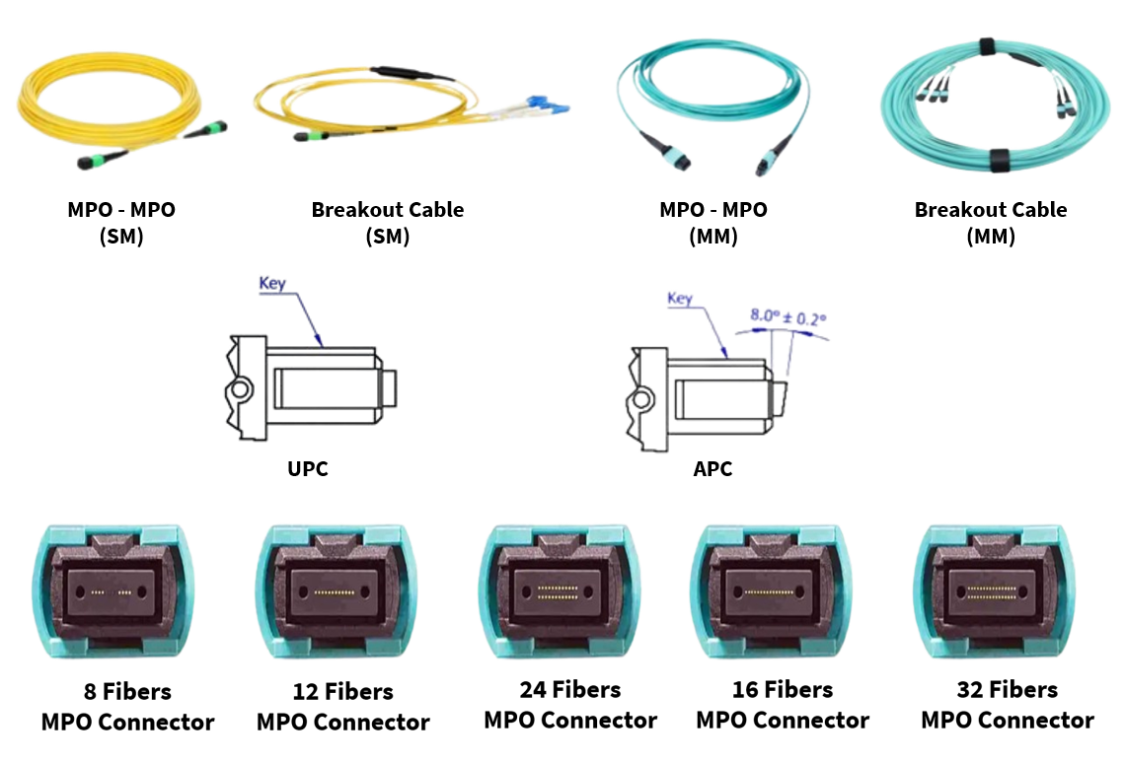

Fiber Optic Cable (MPO)
.png)
_1.png)

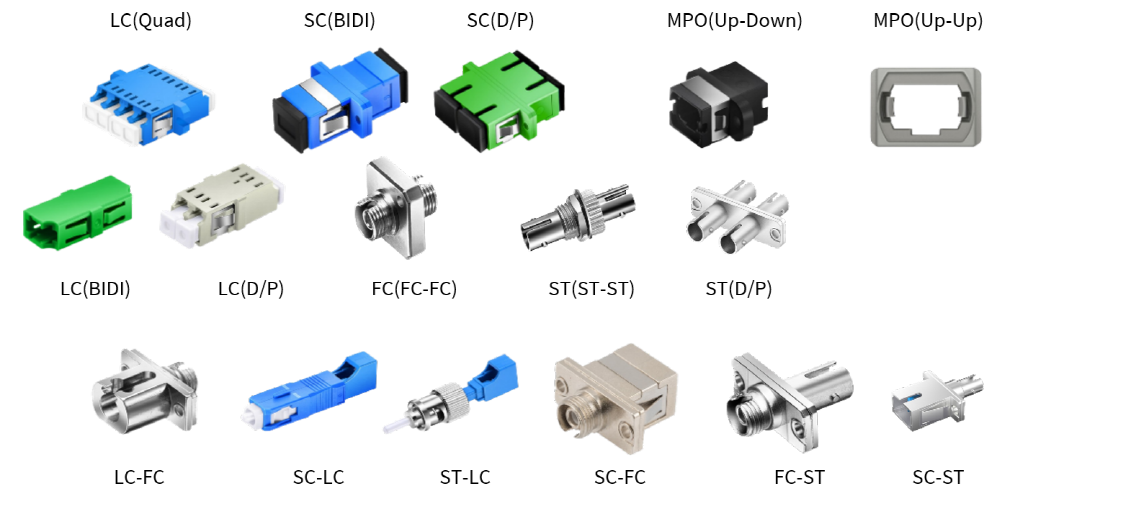

Types of Adapters

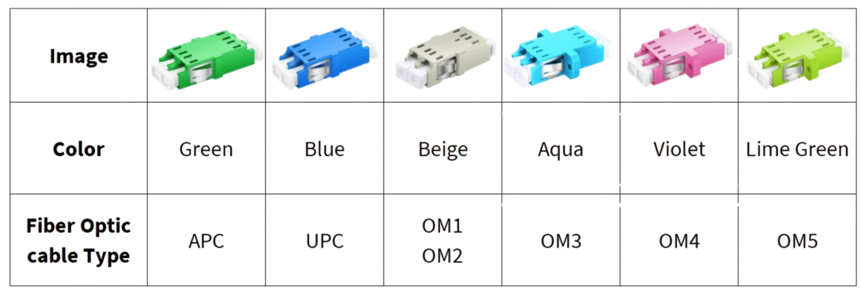

Colors and Applications
